TWIX PLC

Name: TWIX PLC
Brand: Accure Power Technologies Pvt. Ltd.
Price: 3500 INR
Availability: InStock

Price 3500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TWIX PLC Specification

Insulation Material
ABS

IP Rating
IP20

Mounting Type
DIN Rail

Shape
Rectangular

Power Factor
0.98

Overheating Protection
YES

Efficiency
>90%

Connector Type
Screw Type

Operating Temperature
0 to 55C

Surface Finish
Matte

Humidity %
5% to 95% non-condensing

Feature
High Performance, User Friendly Interface

Product Type
Programmable Logic Controller

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
220 V AC

Energy Consumption
5 W

Output Type
Relay

Color
Grey

Dimension (L*W*H)
48*96*76 Millimeter (mm)

Weight
2 Kilograms (kg)

Warranty
1 year

Input Voltage
220 V AC

Size
Compact

Phase
Single Phase

No Of Poles
2

Connection Type
Screw Terminal

Material
ABS Plastic

Digital Output
6 Channels

Display Type
LED Indicator

Digital Input
8 Channels

Communication Ports
RS232/RS485

Analog Input
Optional

Memory Capacity
2K Steps

Response Time
< 0.5 ms

Lifecycle
Long Service Life

Control System
Microcontroller Based

Programming Language
Ladder Diagram

Data Logging
Supported

TWIX PLC Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Main Domestic Market
All India

About TWIX PLC

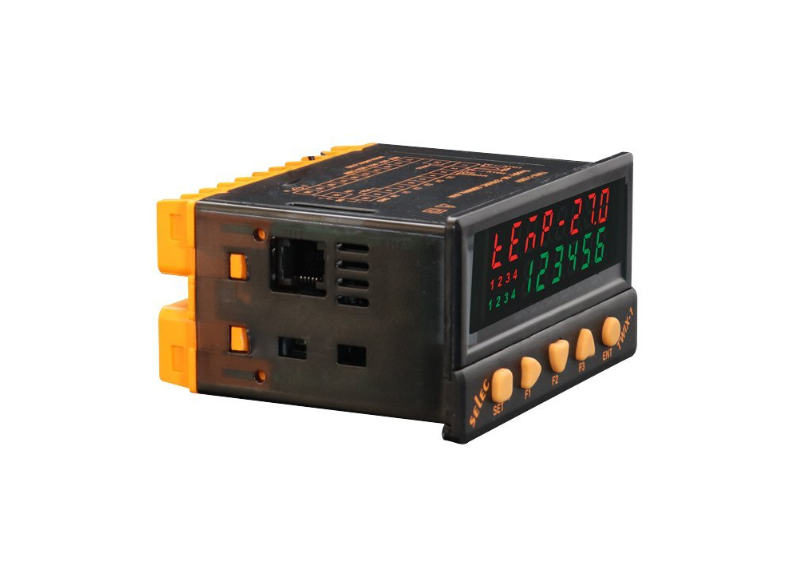

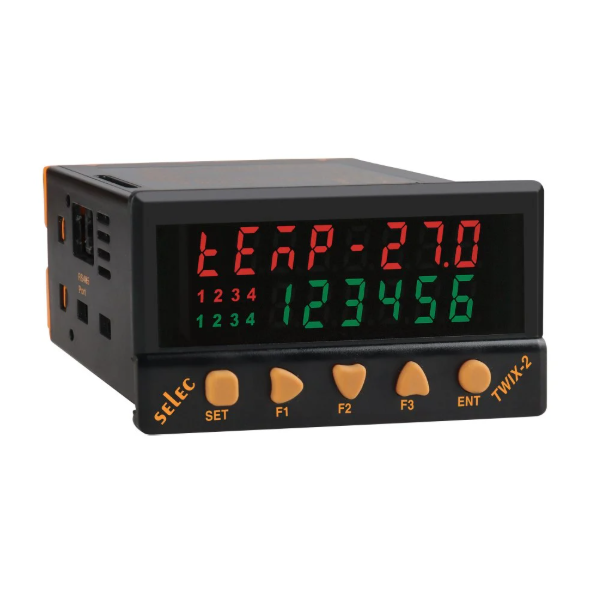

Display: 48 -96 mm panel mount with a 7-segment 4+4 digit red and 4-digit green LED display, accompanied by 5 function keys.
Digital Inputs: 6 standard inputs and 2 configurable inputs that can function as 0-10V analog inputs.
Analog Inputs: 6 channels, configurable as:
2 Thermocouple (TC) or RTD
2 Voltage (0-10V)
2 Current (0-20mA)
Analog Output: 1 channel, configurable as 0-10V or 0-20mA.
Relay Outputs: 5 outputs, each rated for 5A at 230VAC or 24VDC.
Fast Input: 1 channel capable of counting up to 5 kHz.
Communication: RS485 Modbus RTU for downloading and communication purposes.
Supply Voltage: 90-270 VAC or 18-30 VDC.
Memory: 240KB code memory.
Mounting: Panel mount.

Model Variants

TWIX-2-230V: Operates on 230VAC supply voltage.
TWIX-2-24VDC: Operates on 24VDC supply voltage.

High-Speed, Reliable Performance

The TWIX PLC is engineered for high-speed industrial control tasks, with a microcontroller architecture providing a response time of less than 0.5 ms. This efficiency ensures that automation processes run swiftly and reliably, supporting critical operations where timing is essential.

Flexible Connectivity and Easy Integration

Featuring both RS232 and RS485 communication ports, the TWIX PLC seamlessly integrates into existing industrial networks. Its compact, DIN rail-mountable design and screw terminal connections make installation straightforward in tight or varied spaces within control panels.

User-Friendly Programming and Operation

Programming the TWIX PLC is made simple through support for Ladder Diagrams-a standard, intuitive method in the automation industry. With a matte-grey finish, clear LED indicators, and a user-friendly interface, both setup and ongoing management are streamlined for operators.

FAQ's of TWIX PLC:

Q: How is the TWIX PLC installed and connected within an industrial setup?

A: The TWIX PLC is designed for easy DIN rail mounting and features screw terminal connectors for secure wiring. Its compact shape allows it to fit into a wide range of industrial control panels with minimal space requirements.

Q: What are the main applications of the TWIX PLC?

A: This PLC is well-suited for industrial automation tasks such as process control, machine automation, and factory data acquisition. Its robust design and support for both digital and optional analog inputs make it flexible for diverse industrial use cases.

Q: When should the analog input option be considered for use?

A: Choose the analog input option when your automation application requires the measurement and control of variables like temperature, pressure, or sensor readings that provide continuous rather than discrete signals.

Q: Where can I access data logs collected by the TWIX PLC?

A: Data logging is supported, allowing users to retrieve stored information via the communication ports (RS232/RS485). This data can be used for analysis, monitoring, and optimization of automated processes.

Q: What benefits does the TWIX PLC offer in terms of durability and efficiency?

A: Constructed from insulated ABS plastic and rated IP20, the PLC provides reliable protection against dust and accidental contact. It boasts over 90% efficiency and includes overheating protection, ensuring longevity and dependable operation even in demanding environments.

Q: How does the user interface enhance the operation of the TWIX PLC?

A: Operators benefit from a clear user interface that features LED status indicators for quick monitoring, intuitive Ladder Diagram programming, and a straightforward control layout, all contributing to reduced installation and maintenance time.
