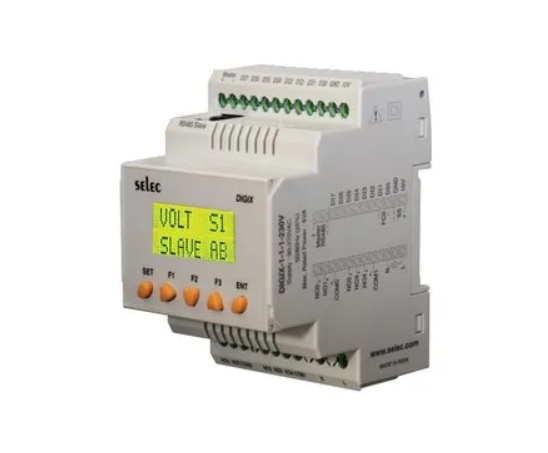

DIGIX-1(DIGITAL I/O PLC)

Name: DIGIX-1(DIGITAL I/O PLC)
Brand: Accure Power Technologies Pvt. Ltd.
Price: 3500 INR
Availability: InStock

Price 3500 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

DIGIX-1(DIGITAL I/O PLC) Specification

Insulation Material
ABS

IP Rating
IP20

Operating Temperature
0C to 60C

Connector Type
Screw Connector

Mounting Type
DIN Rail Mounting

Shape
Rectangular

Overheating Protection
YES

Power Factor
>0.95

Surface Finish
Matte

Efficiency
High

Humidity %
10 to 90% RH (Non-Condensing)

Feature
Compact Design, User Programmable, Expandable I/O

Product Type
Digital I/O PLC

Application
Industrial Automation, Control Panels, Machine Automation

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
230 VAC

Energy Consumption
Low Power Consumption

Output Type
Relay Output

Color
White & Blue

Dimension (L*W*H)
90*70*62 Millimeter (mm)

Weight
1.5 Kilograms (kg)

Warranty
1 year

Size
Standard

Phase
Single Phase

Input Voltage
230 VAC

Connection Type
Screw Terminal

Material
ABS Plastic Enclosure

Program Memory
32 KB

Display
LED Indicators for I/O Status

Power Supply Range
20-28V DC

Supported Protocols
Modbus RTU

Number of Digital Inputs
8

Number of Digital Outputs
8

Scan Time
<1 ms per 1000 steps

Communication Port
RS-232 & RS-485

DIGIX-1(DIGITAL I/O PLC) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA)

Supply Ability
200 Per Day

Main Domestic Market
All India

About DIGIX-1(DIGITAL I/O PLC)

Display: 2 x 8 character LCD with yellow-green backlight

Keys: 5 keys (4 user-configurable)

Digital Inputs: 8 PNP type (6-30V DC), including 1 fast input channel (up to 5 kHz)

Digital Outputs: 5 relay outputs (5A 230V AC or 24V DC)

Code Memory: 112 KB

Communication: RS485-based Modbus RTU protocol

Power Supply:DIGIX-1-0-0-24VDC: 18-30V DC DIGIX-1-230V: 100-270V AC/DC

Mounting: DIN rail

Size: 70 x 90 x 66.4 mm

Expansion: Not supported

Real-Time Clock (RTC): Available in DIGIX-1-1-1-230V model

Certifications: CE, RoHS

Model Code	Power Supply	RTC	Expansion	Description
DIGIX-1-0-0-24VDC	18-30V DC	No	No	Standard model
DIGIX-1-230V	100-270V AC/DC	No	No	Standard model
DIGIX-1-1-1-230V	100-270V AC/DC	Yes	No	Includes RTC

Efficient and Reliable Industrial Control

DIGIX-1 DIGITAL I/O PLC is engineered to deliver fast, reliable digital input and output operations, processing up to 1,000 steps with a scan time of less than 1 millisecond. Its high efficiency and low power consumption make it ideal for extensive use in industrial automation, ensuring precise control and system reliability within control panels and machine automation applications.

Seamless Communication and Integration

Thanks to its support for both RS-232 and RS-485 communication interfaces and Modbus RTU protocol, the DIGIX-1 PLC ensures excellent compatibility with a wide range of industrial devices. This allows for reliable and secure data exchange, essential for scalable automation systems that demand smooth integration and expandability.

Compact, Durable, and User Programmable

Housed in a robust ABS plastic enclosure with IP20 protection, the DIGIX-1 is designed for durability in demanding industrial settings. Its compact matte-finish form factor allows easy DIN rail mounting. The user-programmable memory and expandable I/O options offer flexibility and adaptability for various automation projects.

FAQ's of DIGIX-1(DIGITAL I/O PLC):

Q: How do I connect the DIGIX-1 PLC to my existing industrial control system?

A: You can connect the DIGIX-1 PLC via RS-232 or RS-485 communication ports, using the Modbus RTU protocol for seamless integration with most industrial control systems. The screw terminal connectors and DIN rail mounting make installation quick and secure.

Q: What types of applications are best suited for the DIGIX-1 PLC?

A: The DIGIX-1 PLC excels in control panels, machine automation, and general industrial automation settings. Its robust design, quick scan time, and reliable relay outputs make it suitable for tasks that require fast logic processing and remote monitoring.

Q: When should I consider expanding the I/O capabilities of the DIGIX-1 PLC?

A: If your project requires more digital inputs or outputs than the standard 8 provided, or if you plan to scale your automation system, you can take advantage of the PLC's expandable I/O features for extended control capabilities.

Q: Where can I monitor the status of inputs and outputs on the DIGIX-1 PLC?

A: The PLC features clearly visible LED indicators for both digital inputs and outputs. These LEDs provide real-time feedback on I/O status, allowing you to monitor and troubleshoot operations directly on the unit.

Q: What is the process for programming the DIGIX-1 PLC?

A: The DIGIX-1 comes with a user-programmable 32 KB memory. Programming is typically done through compatible PLC programming software using the communication ports, following standard programming steps as outlined in the provided manual.

Q: How does the DIGIX-1 PLC benefit industrial automation projects?

A: This PLC offers rapid response times, high efficiency, and reliable relay output control, enhancing the performance and reliability of automation tasks. Its energy-efficient design and fast scan time help reduce operational costs while ensuring dependable process control.
