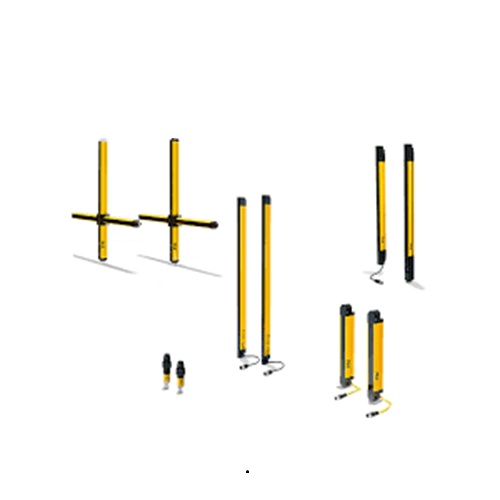

SAFETY LIGHT CURTAINS

Name: SAFETY LIGHT CURTAINS
Brand: Accure Power Technologies Pvt. Ltd.
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SAFETY LIGHT CURTAINS Specification

Response Time
15ms

Rated Voltage
24V DC

Protection Level
IP65

Temperature Range
-10C to +55C

Max. Current
500mA (output relay)

Circuit Type
PNP/NPN (selectable)

Number of Module
1 set (transmitter & receiver)

Automation Grade
Automatic

Mechanical Life
Over 100,000,000 operations

Finish Type
Powder coated

Product Type
optoelectronic safety devices

Material
Aluminum alloy housing

Insulation Resistance
100M (500VDC)

Contact Resistance
100m

Max. Voltage
24VDC Volt (V)

Operating Temperature
-10 C to +55 C. Celsius (oC)

Stoke
100

Warranty
1

Size
30 mm 30 mm (per unit), customizable lengths

Color
Yellow and Black

Weight
Approx. 600g (per unit, varies with length)

Mounting Type
Bracket mounting

Current Rating
500mA (output relay)

Maximum Sensing Range
Up to 12 meters

Safety Category
Type 4 (EN/IEC 61496-1 & -2)

Operating Humidity
35-85% RH (non-condensing)

Ambient Light Immunity
10000 Lux

Cable Length
Standard 3 m (customizable)

Connector Type
M12, 4-pin/5-pin

Supply Voltage Tolerance
20%

Output Type
PNP/NPN or Relay (selectable)

Shock Resistance
500 m/s2, 3 times each direction

Beam Pitch
10 mm / 20 mm / 40 mm

Vibration Resistance
10-55 Hz, 1.5 mm amplitude

Resolution (Detection Capability)
14 mm / 30 mm (selectable model)

Indicator
LED Status Indicator

Light Source
Infrared LED

SAFETY LIGHT CURTAINS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About SAFETY LIGHT CURTAINS

SAFETY LIGHT CURTAINS combine affordability with meritorious safety features, making them a must-have for modern automation setups. These top-notch devices offer an unprecedented resolution of 14 mm/30 mm, adjustable for your application needs, and a maximum sensing range of up to 12 meters. With robust aluminum alloy housing and IP65 protection, they are engineered for rugged environments. Trending among manufacturers and suppliers, these curtains feature selectable PNP/NPN or relay outputs, LED status indicators, and customizable length options. Add to Cart today for reliable, automatic safety solutions!

Application Areas and Specific Uses of SAFETY LIGHT CURTAINS

SAFETY LIGHT CURTAINS are ideal for safeguarding hazardous zones in industries such as robotics, automotive assembly, and packaging. They ensure safe operations around presses, conveyors, and cutting equipment. From general factory automation to specialized manufacturing processes, these curtains provide essential finger, hand, and body protection. Their advanced detection capability and automatic function make them suitable for high-traffic industrial areas, enhancing workplace safety while maintaining seamless productivity.

Supply Capabilities, Packaging, and Certifications

Our SAFETY LIGHT CURTAINS are readily available for swift goods transport to both domestic and export markets. Packaging is robust, ensuring goods arrive in pristine condition, with options for bulk or customized orders. We estimate efficient delivery timelines based on your location and requirements. Each product meets Type 4 (EN/IEC 61496-1 & -2) certifications, ensuring top standards for safety and reliability, making us a dependable distributor, exporter, and service provider.

FAQ's of SAFETY LIGHT CURTAINS:

Q: How does the resolution of the SAFETY LIGHT CURTAINS affect their application?

A: The selectable resolution of 14 mm or 30 mm allows the SAFETY LIGHT CURTAINS to be tailored to specific protection needs, such as finger, hand, or body detection, enabling flexibility in different types of industrial processes.

Q: What types of outputs are supported by these safety light curtains?

A: Our light curtains support both PNP/NPN and relay outputs, offering compatibility with a wide range of control circuits and safety systems.

Q: Where can these safety light curtains be used?

A: They are suitable for installation in automated assembly lines, robotic work cells, material handling systems, packaging machinery, and environments requiring rigorous safety compliance.

Q: What is the process for ordering customized lengths of SAFETY LIGHT CURTAINS?

A: To order customized lengths, simply consult with our sales team, specify the required length for your application, and we will estimate lead time and provide a tailored solution.

Q: What are the main benefits of using SAFETY LIGHT CURTAINS in industrial settings?

A: Benefits include enhanced operator safety, reduced risk of accidents, quick installation, reliable performance under harsh conditions, and compliance with top safety standards (Type 4).
