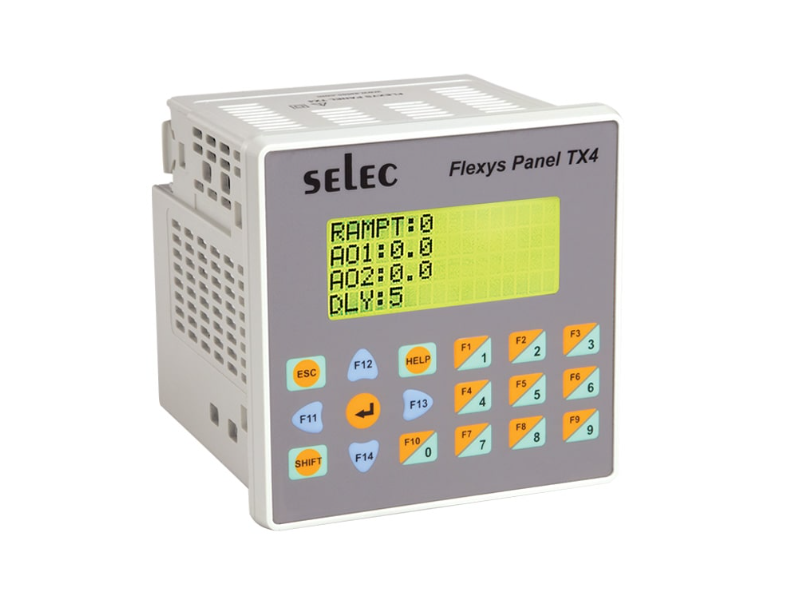

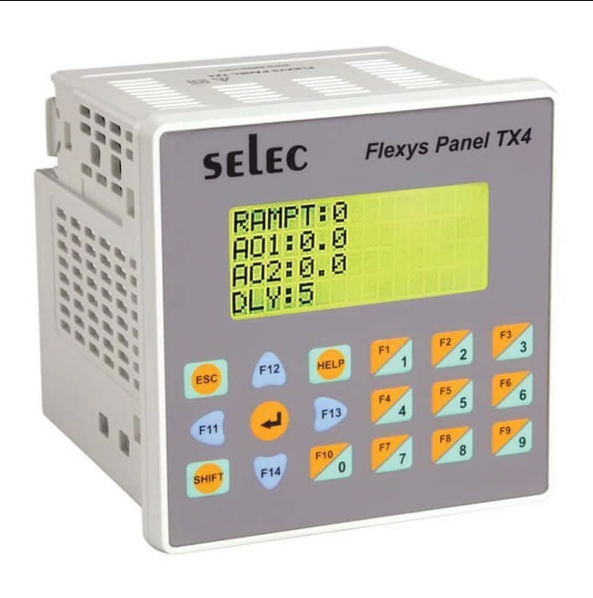

Flexys Panel TX4

About Flexys Panel TX4

• Display & Interface: Equipped with a 4ï16 character LCD display (with backlight) and 18 keys (14 user-configurable), facilitating intuitive operation and monitoring.

• Modular I/O Expansion: Supports up to 4 I/O cards, allowing customization with digital, analog, relay, and fast input modules to meet specific application requirements.

• Communication Protocols: Features RS485-based Modbus RTU for communication with other devices and supports proprietary protocols for expansion modules.

• Real-Time Clock (RTC): Includes a built-in RTC with time switch functionality, enabling time-based control operations.

• Supply Voltage: Operates on 90ï270 VAC or 18ï30 VDC, providing flexibility in power sourcing.

• Mounting: Designed for panel mounting, optimizing space in control panels.

• Fast Input Capability: Supports 2-channel fast inputs up to 5 kHz on the power supply card, suitable for high-speed counting applications.

📐 Dimensions

• Size: 99 mm ï 99 mm ï 90.5 mm

🔌 Communication Interfaces

• Modbus RTU: RS485-based communication for integration into industrial networks.

• Proprietary Protocol: For communication with Selec's expansion modules.

ïïï Expansion Modules

• FL-TX4-DI04-PS-230V: Power supply card with 4 digital inputs (230 VAC).

• FL-TX4-DI04-PS-24V: Power supply card with 4 digital inputs (24 VDC).

• FL-TX4-LG-1-0-1-V2: Logic card with RTC, Modbus, and proprietary expansion support.
